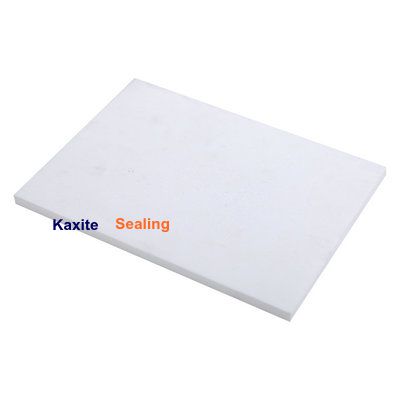

Pure PTFE sheet is featured by the best anti-chemical and dielectric properties among the already known plastics. It is also ageless, nonstick, and able to work from -180 ~ +260 degrees. Kaxite has three styles of PTFE sheets.
KAXITE PTFE products includes sheets, rods, tubes, tapes and gaskets, etc. They are molded, skived or cut from 100% virgin PTFE. It has the best chemical corrosion resistance among known plastics, without being aging, lowest friction coefficient.
KAXITE B301S – Skived PTFE Sheet
KAXITE B301M -- Molded PTFE Sheet
KAXITE B301F -- Filled PTFE Sheet
The filled PTFE sheet are molded PTFE resin mixed with the most frequently used filler materials, glass fiber, carbon fiber and graphite, etc. This style sheet has improved compression strength, better abrasion resistance, high thermal conductivity and lower expansion compared with pure PTFE sheets.
>Made for sealing gaskets
>Electrical insulation parts, lining, oil less lubricating materials etc.
>Best chemical corrosion resistance
>Lowest friction coefficient, wear resistance
Temperature: -180~+260°C
Style | Products | Tensile strength | Pressure Mpa | Density g/cm3 | Temperature oC |
B301S | Skived PTFE | 15 Mpa | 12 | 2.1~2.3 | -100~+260 |
B301M | Molded PTFE | 14 Mpa | 10 | 2.1~2.3 | -100~+250 |
B301F | Filled PTFE | 10 Mpa | 16 | 2.1~2.5 | -100~+320 |
Size mm | Thickness mm | Tolerance mm |
150x150 | 1.0~30 | +/-0.30~+/-0.50 |
250x250 | 1.5~30 | +/-0.30~+/-0.50 |
300x300 | 1.5~30 | +/-0.30~+/-0.50 |
450x450 | 1.5~30 | +/-0.30~+/-0.50 |
600x600 | 1.5~30 | +/-0.30~+/-0.50 |
800x800 | 1.5~30 | +/-0.30~+/-0.50 |
1000x1000 | 1.5~30 | +/-0.30~+/-0.50 |
1200x1200 | 2~30 | +/-0.30~+/-0.50 |
1000x2000 | 3~30 | +/-0.30~+/-0.60 |
1500x1500 | 3~35 | +/-0.30~+/-0.60 |
2000x2000 | 5~35 | +/-0.30~+/-0.60 |
